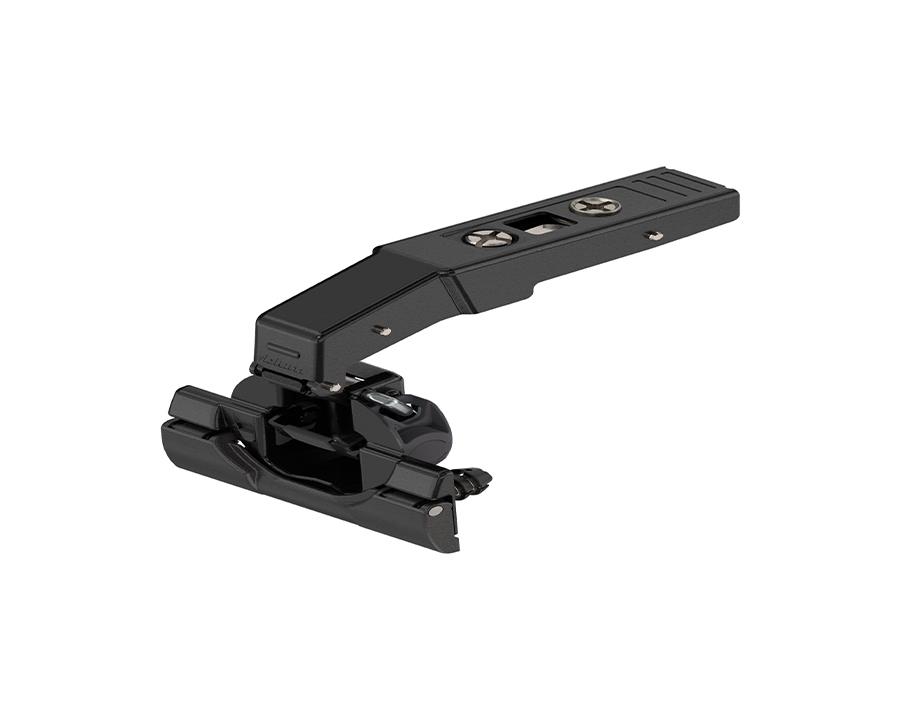

Blum CLIP top BLUMOTION Blind Corner Hinge 95° – in Onyx Black (Inset Application)

Description

● Application: Blind corner hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap type: 70.1503 (BPC10021)
● Boss material: Steel boss
● Boss finish: Onyx black
● Boss assembly: INSERTA
● Flange width: 57mm
● Flange length: 27.5mm
● Flange height: 6.4mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance:7mm
● Arm material: Steel
● Arm finish: Onyx black
● Collision measurement (hinge arm height): 21mm
● Fixed dimension/factory setting: -8mm
● Type of side adjustment: With screw
● Side adjustment: +/-2.5mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +/-1mm
● Gap: 3mm
● Item package: 1 piece
